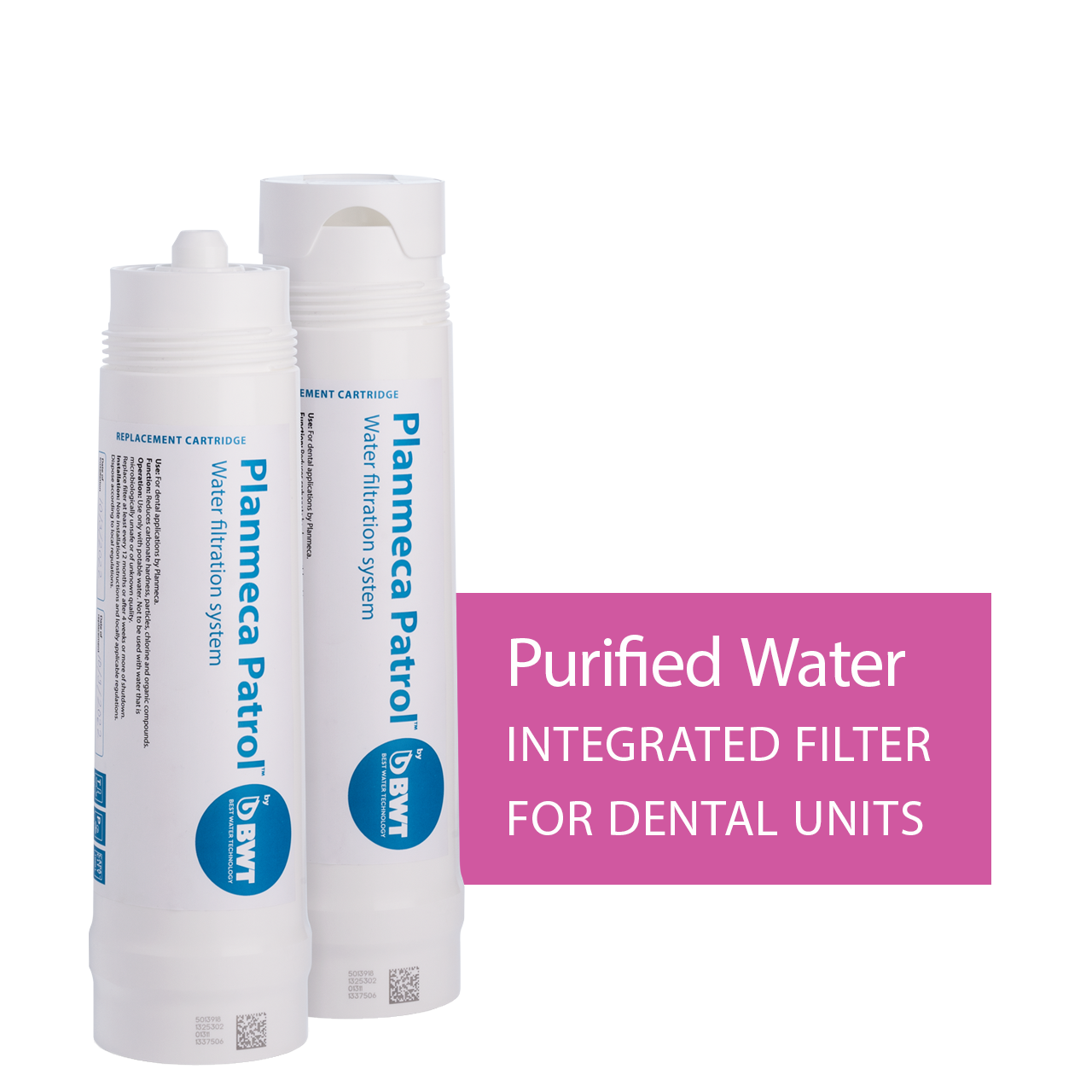

Planmeca Patrol™ by BWT
Integrated water filtration systems for dental units
Get in touch- A water filtration systen installed inside your dental unit
- Prevent limescale
- Improves the smell and taste of water
- Less downtime
- No external filter needed
- Avoid unexpected service calls
- Ensures the proper operation of your dental unit and instruments
Product Details
Technical Details
Downloads
Planmeca Patrol™ by BWT
Integrated Water Systems for dental units
Planmeca PatrolTM by BWT is a dental unit integrated water filtration system that doesn't require any external filters. It removes unwanted particles from the water entering the dental unit, prevents limescale formation, adjusts water hardness and improves the smell and taste of the water.
Planmeca PatrolTM by BWT includes an advanced four-layer filtration system and an ion exchanger to remove and decrease the number of unwanted elements in the water entering the dental unit. This ways, it ensures the proper operation of the dental unit in an easy way.

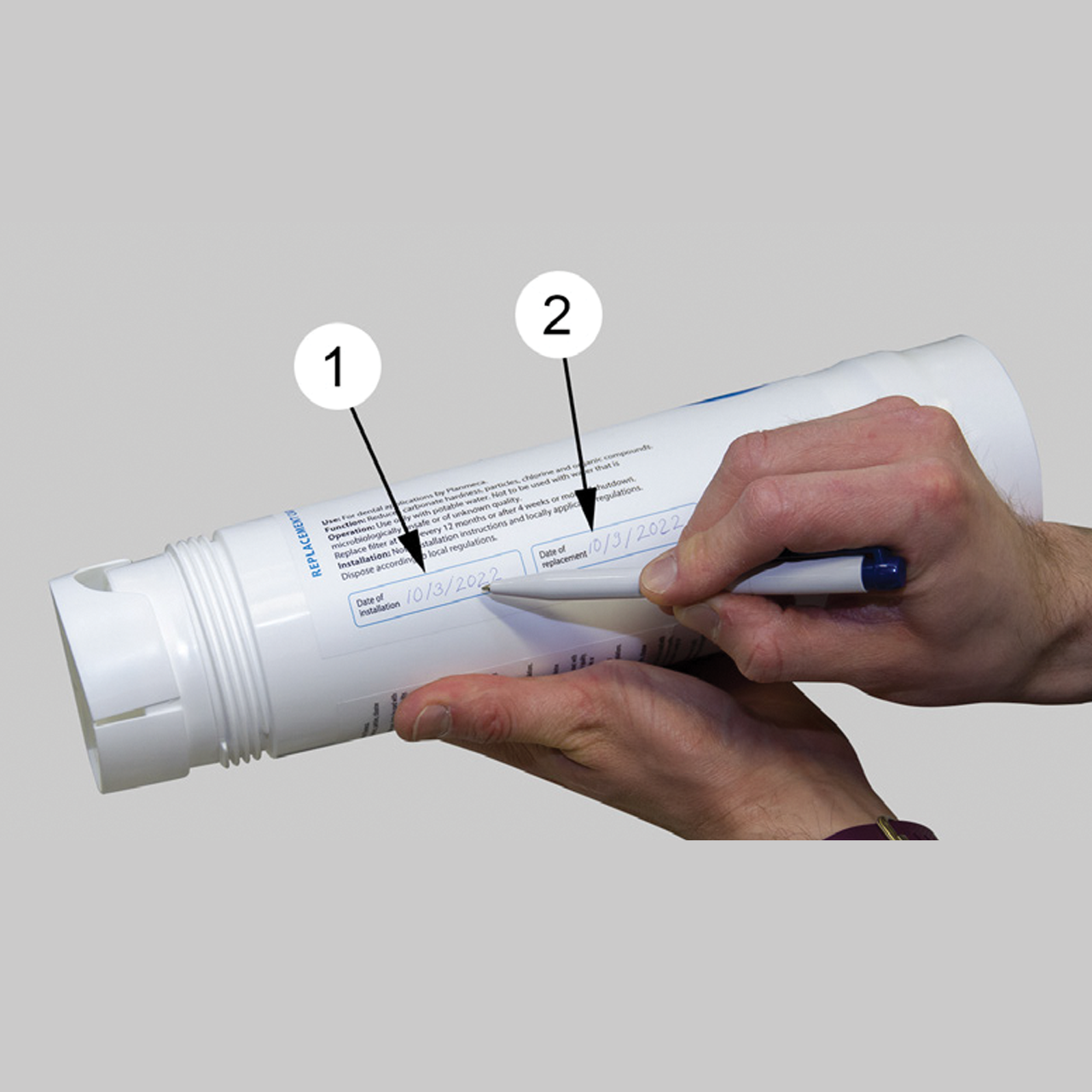

The filtration system is located inside the unit, eliminating the need for external filters and their installation and maintenance. The filter system is easily replaced and can be done during normal maintenance or more often depending on the need.
Planmeca PatrolTM 5by BWT
| Type | Integrated Water filtration System |
| Capacity, conductivity ≤ 5 µS/cm | 290 l |
| Capacity, conductivity ≤ 15 µS/cm | 360 l |
| Volume flow max. | 100 l/h |
| Max. temperature | 30 °C |
| Water pressure max. | 8 bar |
| Supply and return | 3/8” nipple |
| Ambient air temperature (min/max) | 5/40 °C |
| Dimensions:(H x Ø) (H=connection height) | 448 x Ø147 mm |
| Weight, dry / wet (kg) | 1.8 |
