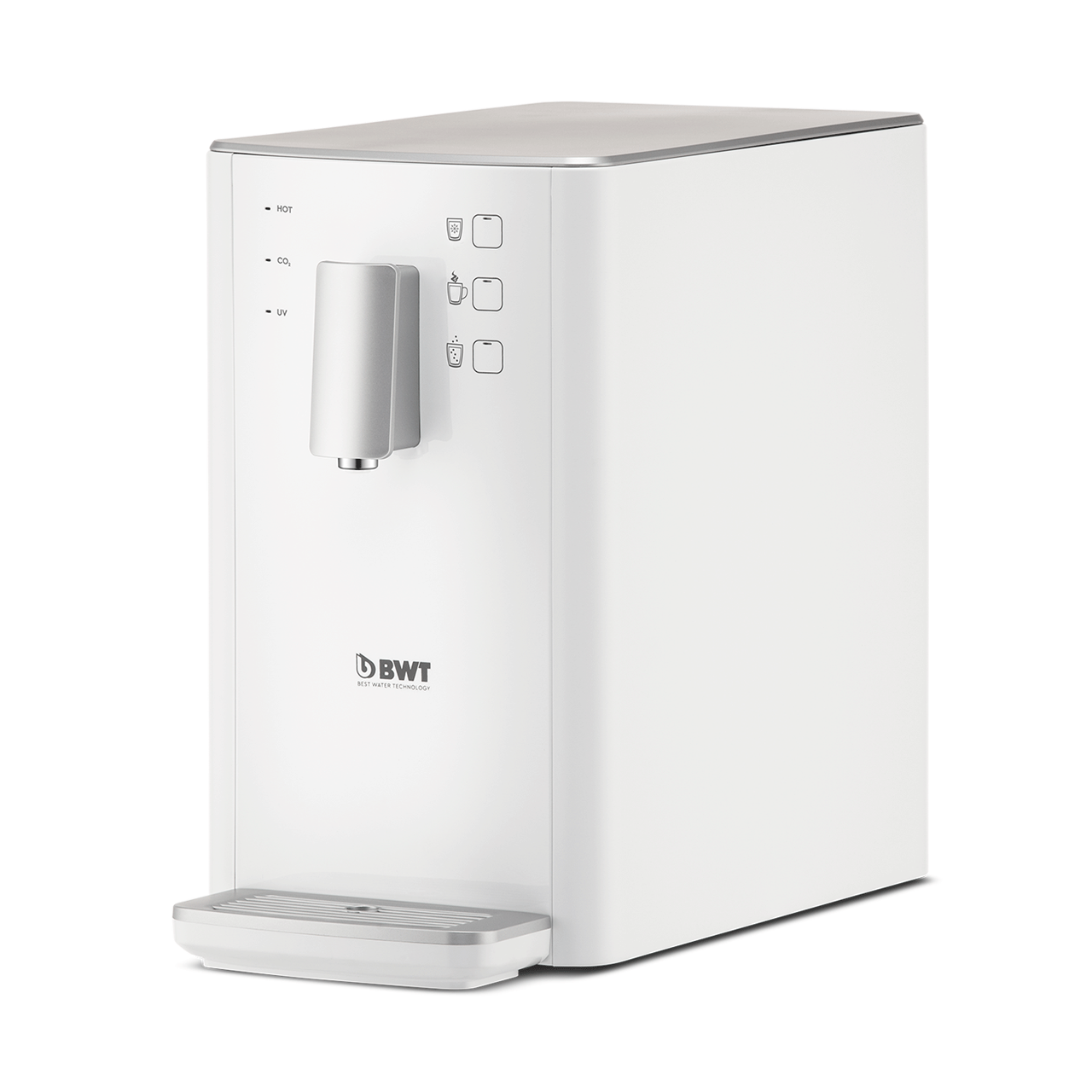

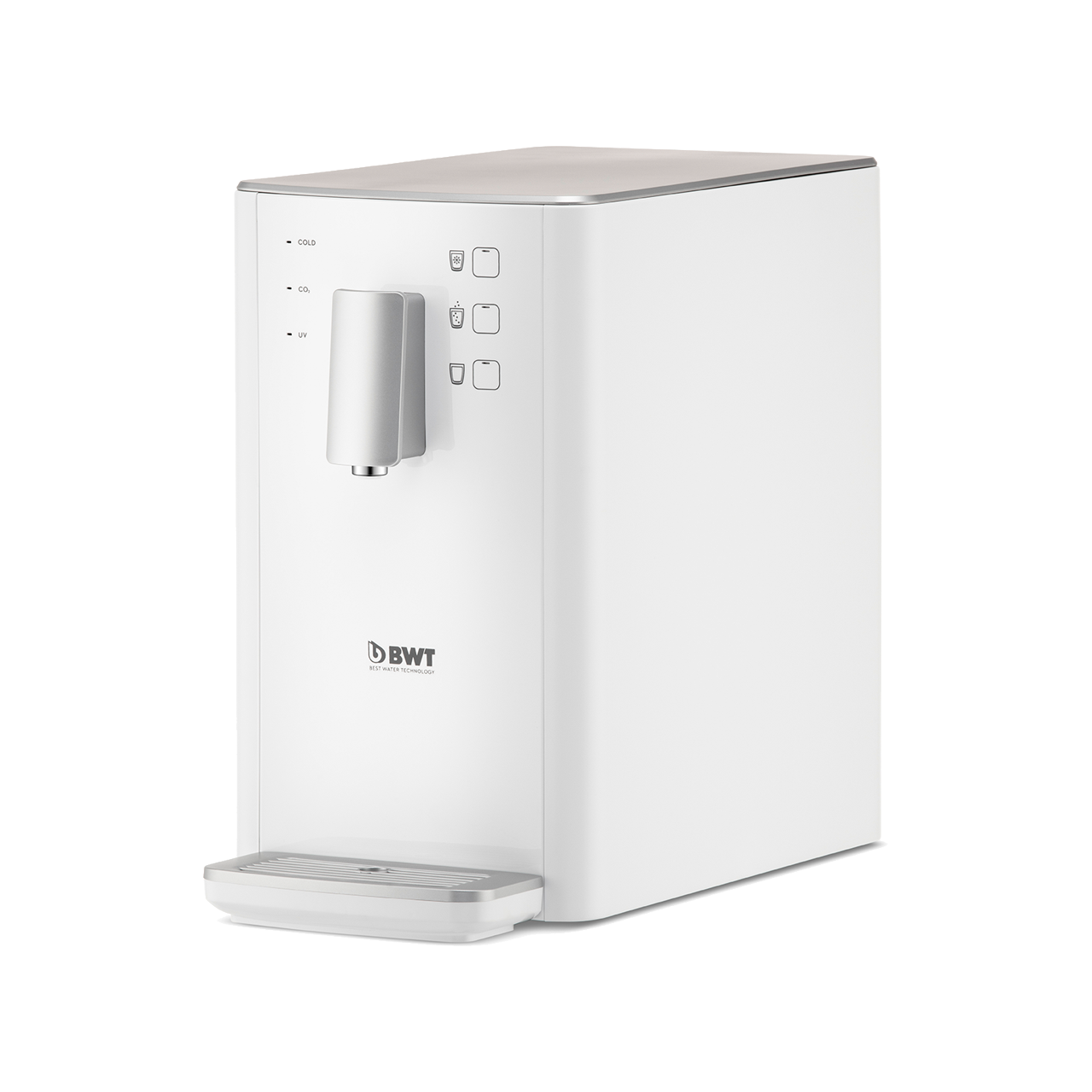

AQA drink Pro 20 HCS tabletop unit

BWT attaches great importance to high quality products. In addition to state-of-the-art production, AQA drink filter cartridges are also subjected to intensive quality tests before they leave the factory.

In excepetional circumstances filters can become damaged during transportation or installation. In such cases the filter should not be used. If the cartridge is delivered damage please notify the carrier immeadiatly and then our own customer service team by calling 01494 838100 pr by emailing [email protected]

If the tap on your dispenser is not working please check that the water supply or shut-off valves are open. Check that the AQA drink filter cartridge is fully screwed into the filter head. If this is not the case, remove the AQA drink filter cartridge by half a turn and then screw it back into the filter head as far as it will go. Check that the flow direction and the direction arrow on the filter head match. Flow can only occur if both point in the same direction.

Only food grade CO2 should be used E290 for water dispensers please check labels carefully before use.

The transport of CO2 bottles is subject to the hazard ordinance road/railway/ inland shipping - GGVSEB. Transport in passenger cars and closed vehicles should only be carried out in exceptional cases and under special precautionary measures. Transport in trailers is preferable. During transport in closed vehicles, sufficient ventilation must be provided, e.g. open windows, switched on blower, ... The bottles must be secured against slipping, falling over or rolling around. Stowage should be as separate from the passenger compartment as possible. In general, your gas supplier will be happy to help you.

With regard to the storage of CO2 cylinders, it depends on the size of the cylinders. You can store 425g bottles anywhere. For a 2kg bottle, the room size must be at least 13.5m² with a room height of 2.5m. The legal specifications are to be kept absolutely. The room temperature should not exceed 22°C.

CO2 bottles can be ordered from BWT UK, catering supplies and some wholesalers

An AQA drink water dispenser can be used in almost all areas of daily life - at home, in the office, in law firms, in fitness centres, at trade fairs or events, in schools and even in canteens.

The number of people who can be supplied with a water dispenser depends on the machine. The number of users ranges from one to 100 people who can be supplied with drinking water. Find out more about the number of users at the respective device information.

All AQA drink water dispensers are piped devices. This means that the devices are connected directly to the water pipe. This means that there is no need to set up a storage tank and fresh, filtered water can be tapped at any time.

No. All AQA drink water dispensers are equipped with a drip tray. The drip tray is removable and can be emptied and cleaned. The free-standing units can be equipped with a waste water tank, which is stored in the base cabinet. It is accessible and can be emptied at any time. Of course, your device can also be connected to the waste water pipe if one is nearby.

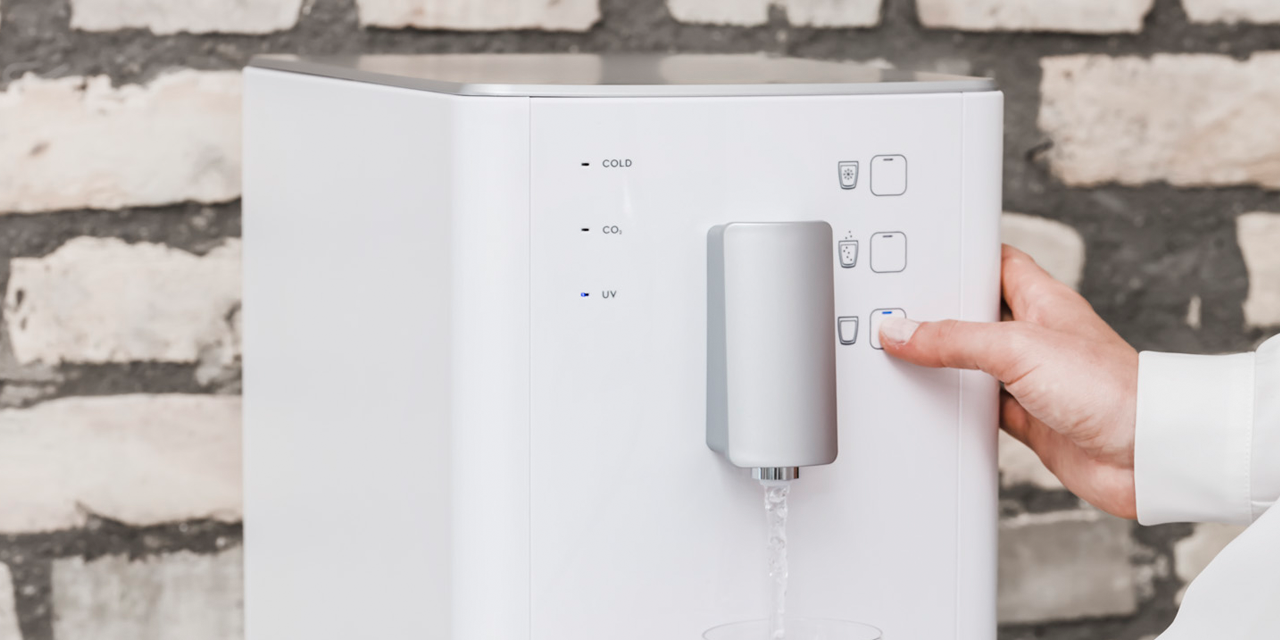

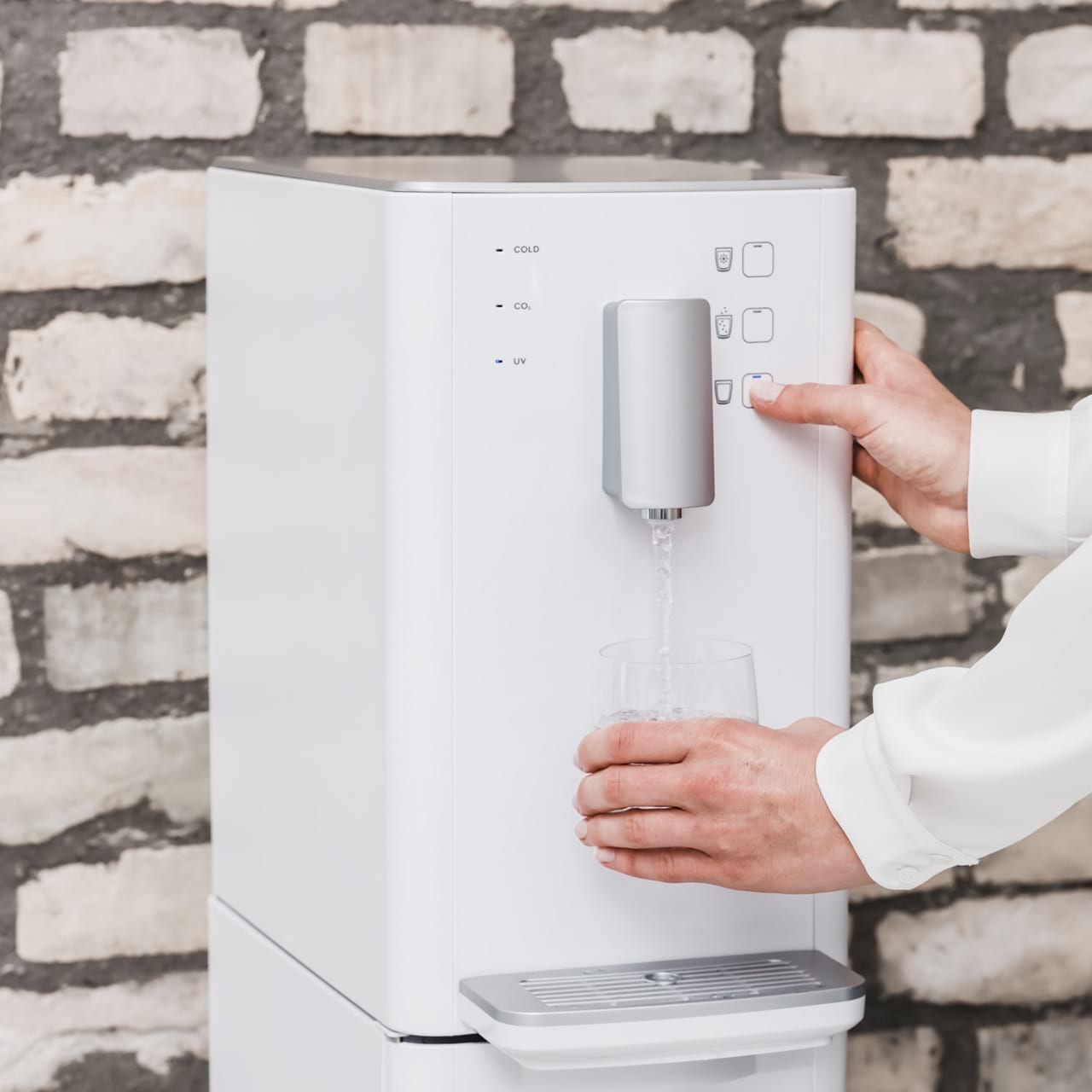

The AQA drink water dispensers offer up to 3 water options to choose from. Depending on the model and personal taste, you can access still, chilled, sparkling or hot water depending on the model you choose.

The water dispenser should be installed no further than 5m from a water connection. If the water pipe is longer, too much standing water will remain in the pipe.

No. In principle, only two factors need to be considered:

• Existing water and electricity connection
• A bit of space

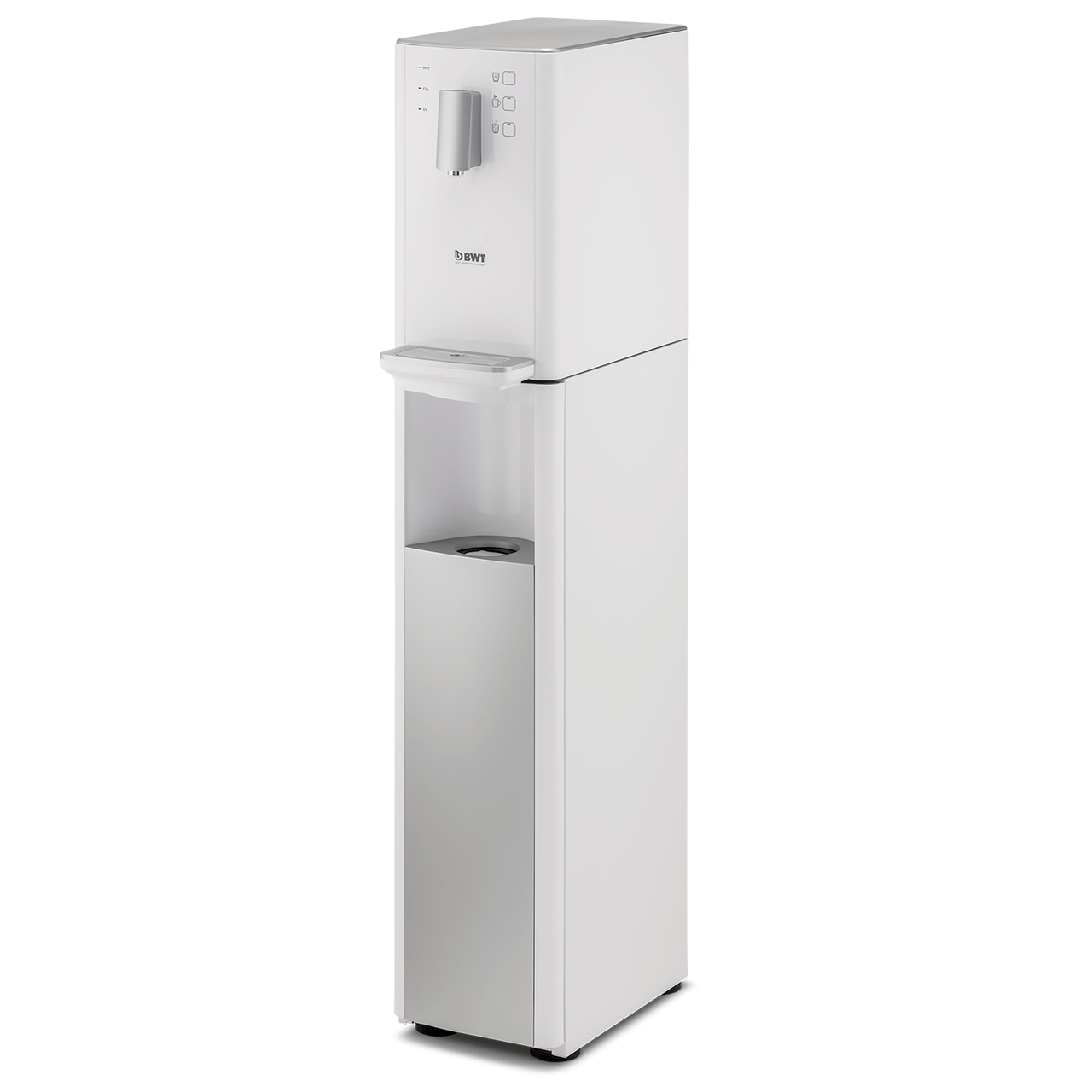

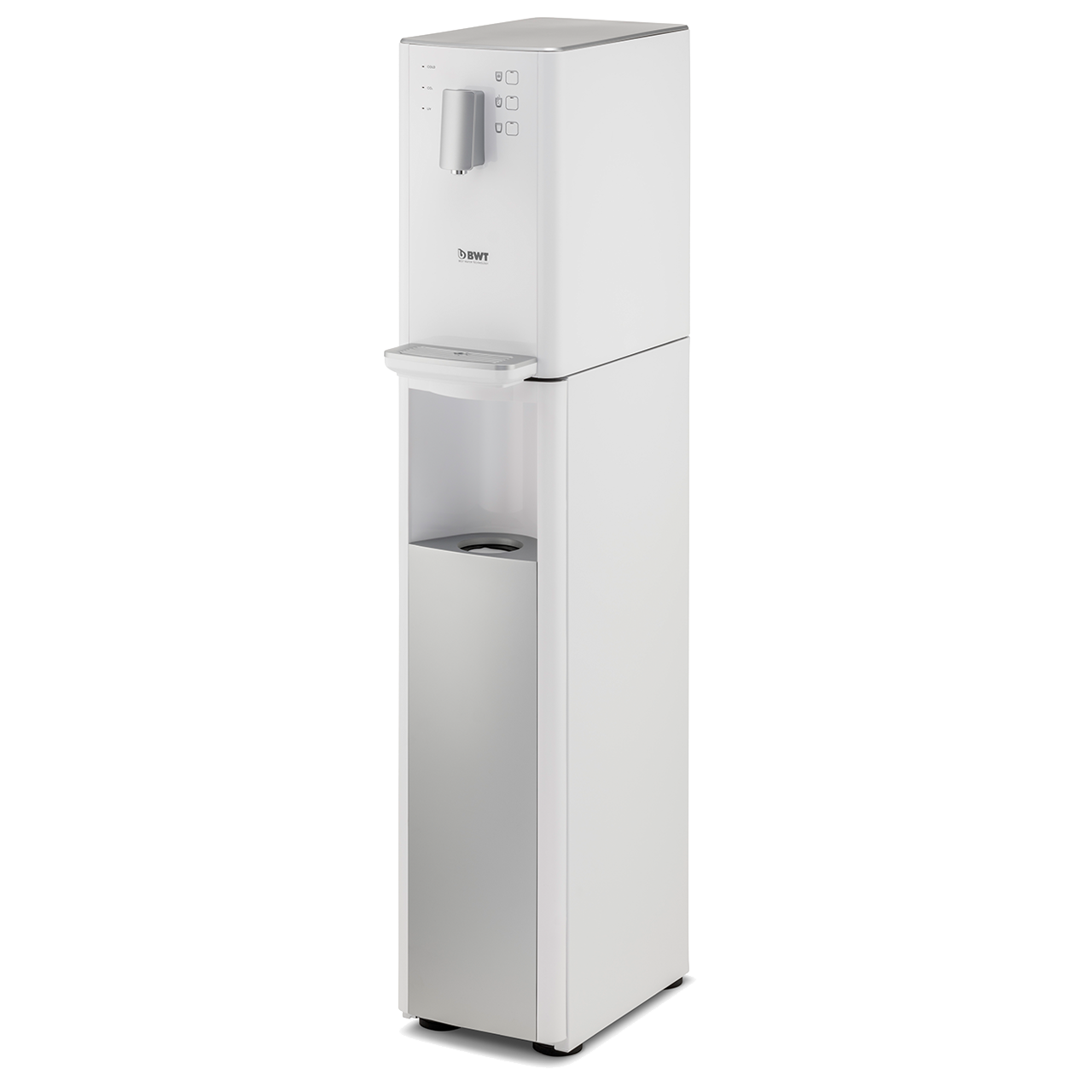

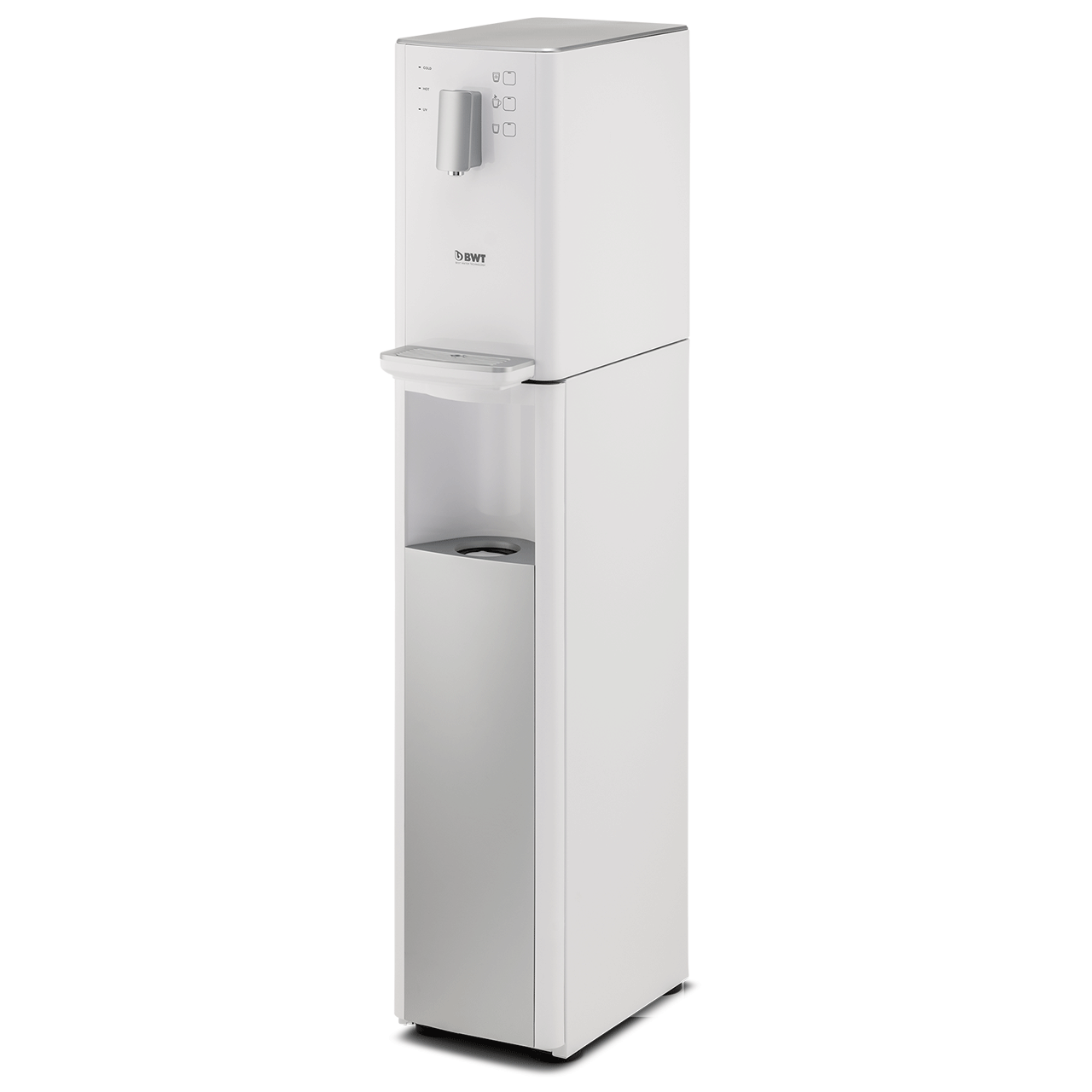

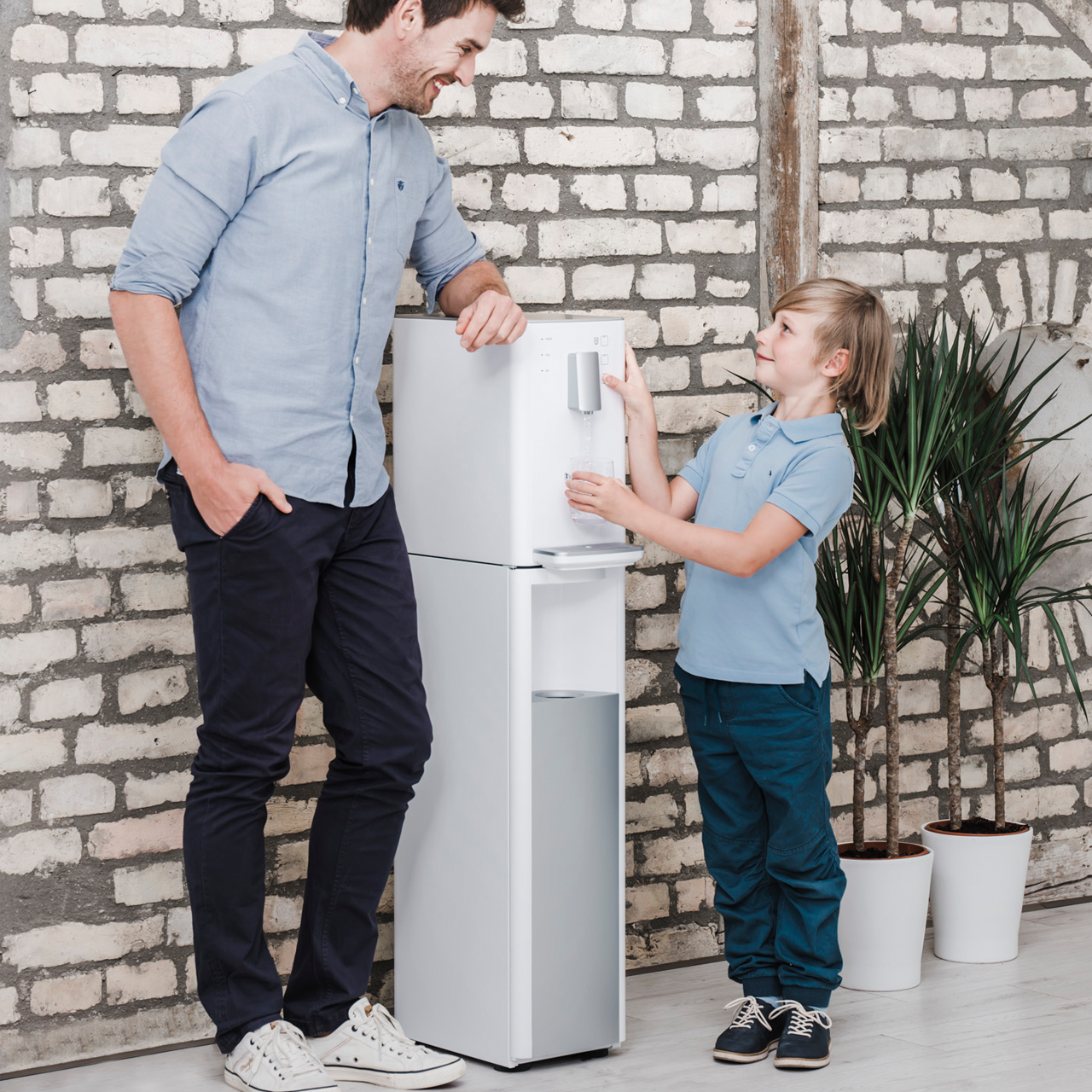

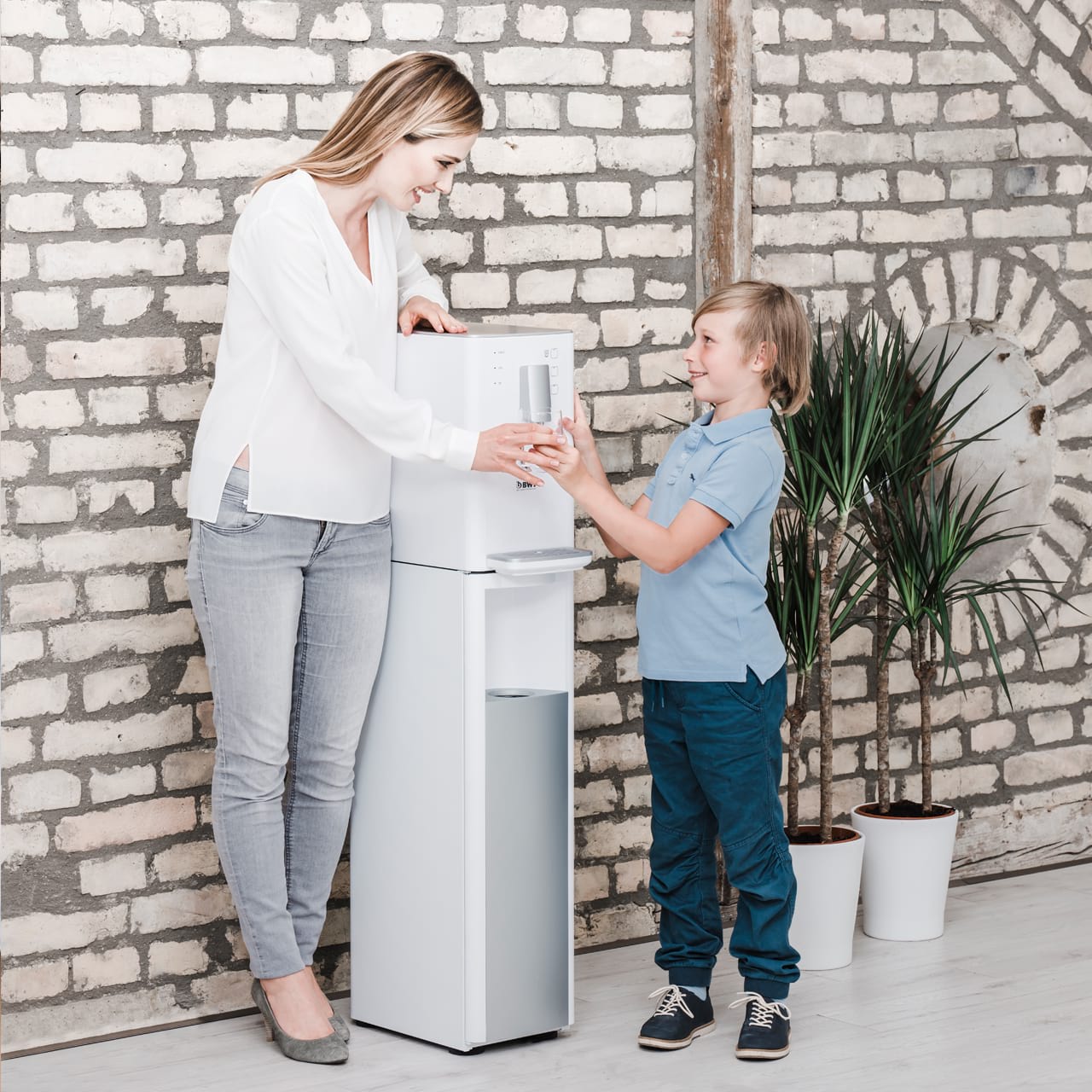

In public buildings and offices all conditions are usually present. The AQA drink water dispensers are available as table-top or free-standing units. The table-top units are of the same size as commercially available fully automatic coffee machines and fit on any kitchen worktop.

The filter and the CO2 bottle can be placed in any base cabinet. For the installation only a small hole has to be drilled into the worktop to pass through the connecting hoses. If you don't want to place it on the worktop or if you don't have the space, the solution offers itself as a stand-alone unit. The table-top unit is placed on a base cabinet, which also provides space for the filter and the CO2 bottle."

Tap water is delivered to your home or premises meeting the high standard of qualtity laid down in the regualtions. Unfortunatley some of the trace elements allowed and foreign particles from your own plumbing system can spoil the taste and the clarity of the water. A moderm water filter will remove these so you can enjoy water that clear and odour free. Choosing a specialist BWT cartridge you can add vital minerals like magnesium and zinc and even remove any microplastics.

Like any electronic device, a water dispenser consumes electricity. But not more than other household appliances, such as a refrigerator. Electricity consumption depends on the amount of water to be cooled.

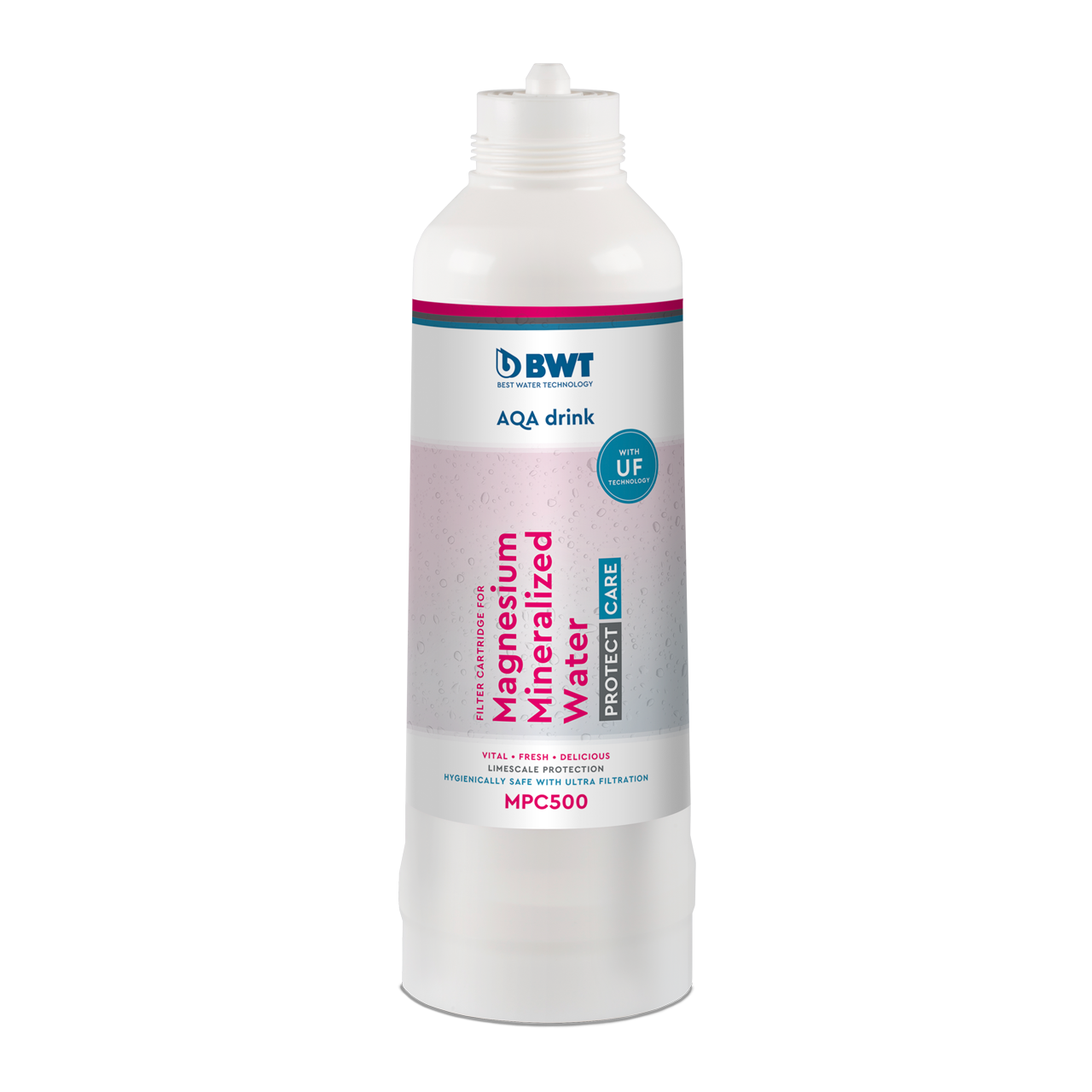

• The AQA drink filter cartridge must be replaced at the latest after 6-12 months, depending on the type of filter, after the first use or after the capacity has been exhausted.
• If the use is interrupted for more than 2 days, rinse the filter system with 4-5 litres of water before using it again. If the system is not used for more than 4 weeks, we recommend replacing the AQA drink filter cartridge.

Water dispensers must be cleaned regularly and 'deep cleaned' (sanitised) every 6 months to ensure hygienically safe operation. The maintenance of the units is carried out by a BWT service technician or by trained specialist personnel. Please contact us for more details of our sanitising programmes

For the installation of an AQA drink water dispenser you need a potable water supply within 5m of the area you would like it installed. A power connection (Mains socket) 220 - 240 V/50Hz.

A water dispenser makes sounds like any refrigerator. When you draw sparkling water, you will also hear a pump.

Yes. It is necessary to keep a distance of 5 cm from the wall in order to be able to dissipate the waste heat generated by the cooling.
